  • Product Details
  • Model: HD9 44.38
  • Year of Registration: 2015
  • Equipment: Heavy Duty Bus - People Carrier for On/Off Road
  • Quantity Available on Stock: 1
  • Price: 178.800,00 EURO
  • Colour: White
  • Cabin: Cab built in galvanized pressed steel with hydraulic tilting up to 60°. Cab suspension with 4 helical springs with coaxial shock absorbers and integrated dampers, anti-roll bar and end-of-stroke pads - ROP FOPS Structure
  • Engine / Cylinders: Iveco CURSOR 13 turbo intercooler euro 3 diesel injection/cycle with electronic unit injection pumps. WG, Single block head, four valves per cylinder, light alloy pistons. Total displacement: 12.882 cm3 . Bore for stroke: 135 x 150 mm. 6 in-line cylinders. Water cooling. Viscostatic cooling fan. Dry air filter with safety cartridge. Vertical muffler.
  • Power: 380 HP
  • Emission: Euro 3
  • Drive: 4x4
  • Axles: FRONT Steering, hot moulding in high tensile steel. Wheel stud protection. REAR Two tandem drive axles. Double reduction: central with crown wheel and pinion and final by epicyclical group in wheel hubs. 2nd axle with torque distributor to the two rear axles. Lockable differentials by pneumatic control from driver seat. Tandem assembled to the chassis by reaction rods with silentblock
  • Brakes F/R: Front and rear “duo-duplex” self-adjusting wedge type brakes with automatic play take-up. Total net braking surface 9.276 cm2. ABS system
  • Gearbox: Manual ZF Ecosplit ZF16S2220TO 4 technology gearbox with servoshift, 16 synchronised forward speeds + 2 reverse
  • Suspension F/R: FRONT Reinforced 1st axle, parabolic springs, n° 4 leaves 24x90 mm, with shock absorbers and stabilizer bar. On request: Parabolic springs, n° 5 leaves 24x90 mm. REAR Parabolic springs, swivelling on central pin: n° 4 leaves 40x100 mm, supplemented by torque bars and stiffening brackets.
  • Tyres F/R: 395/85 R20
  • Download Technical details:
  • Technical Brochure ENG - HD9 4x4
  • Heavy Duty People Carrier Description
Make an enquiry

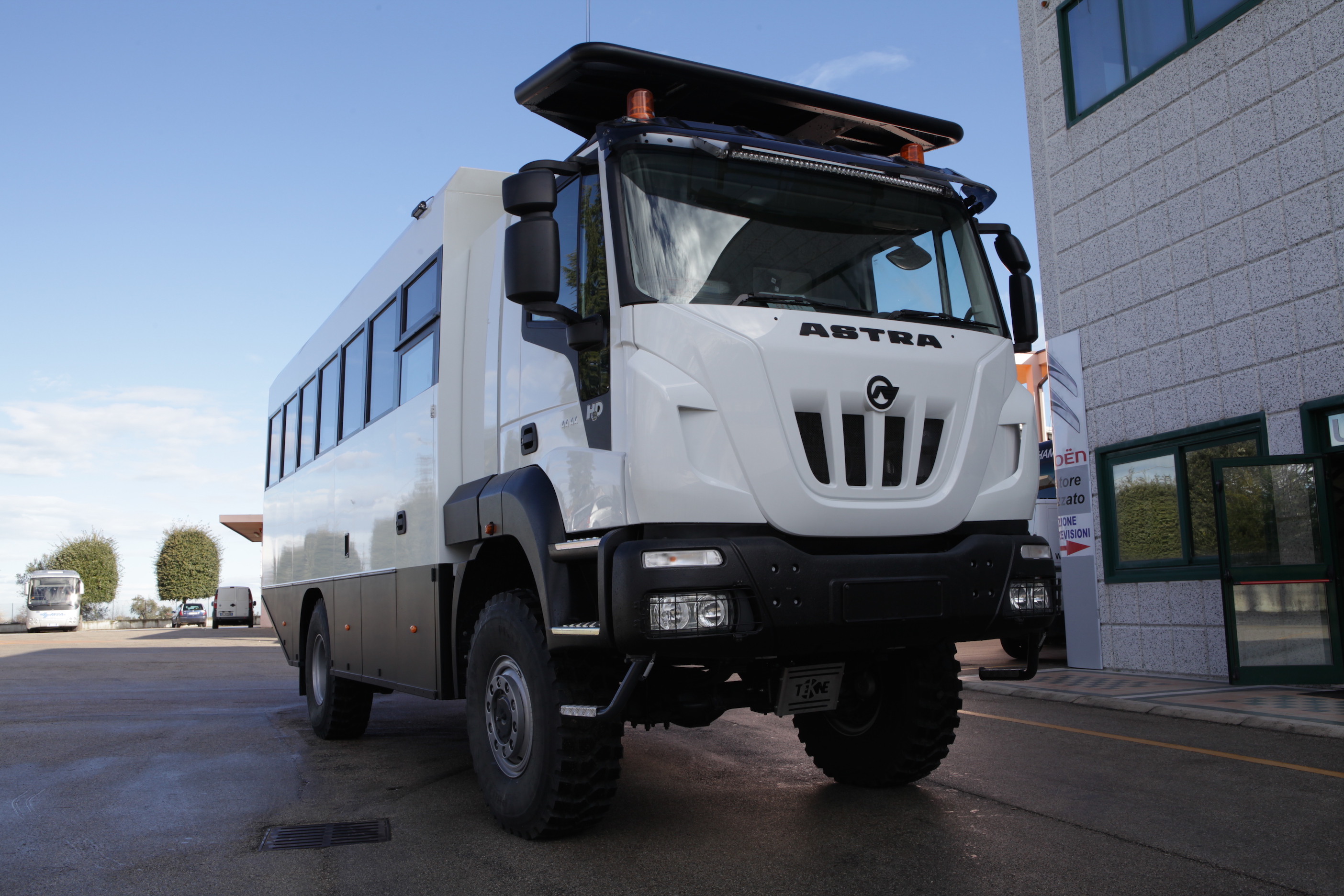

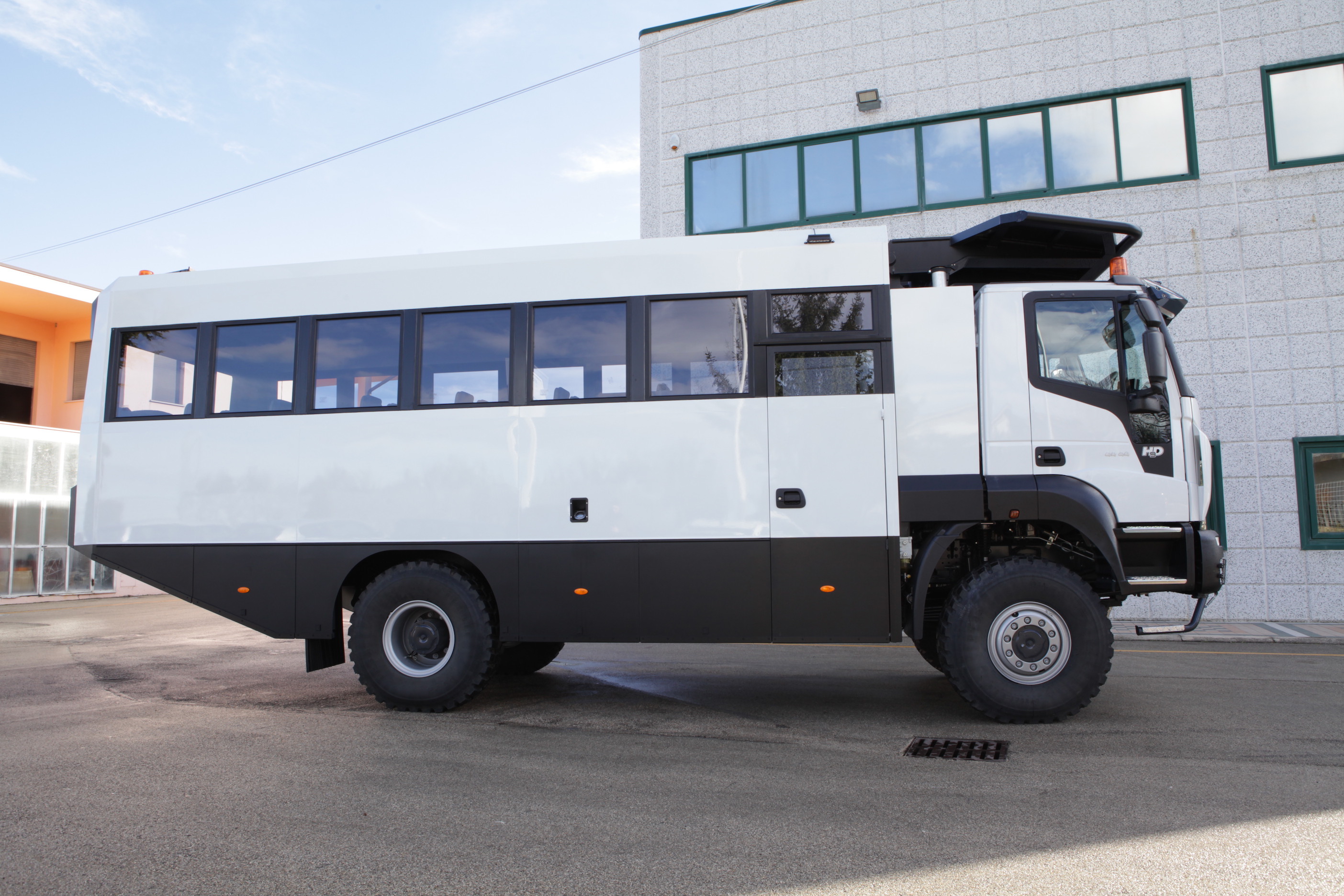

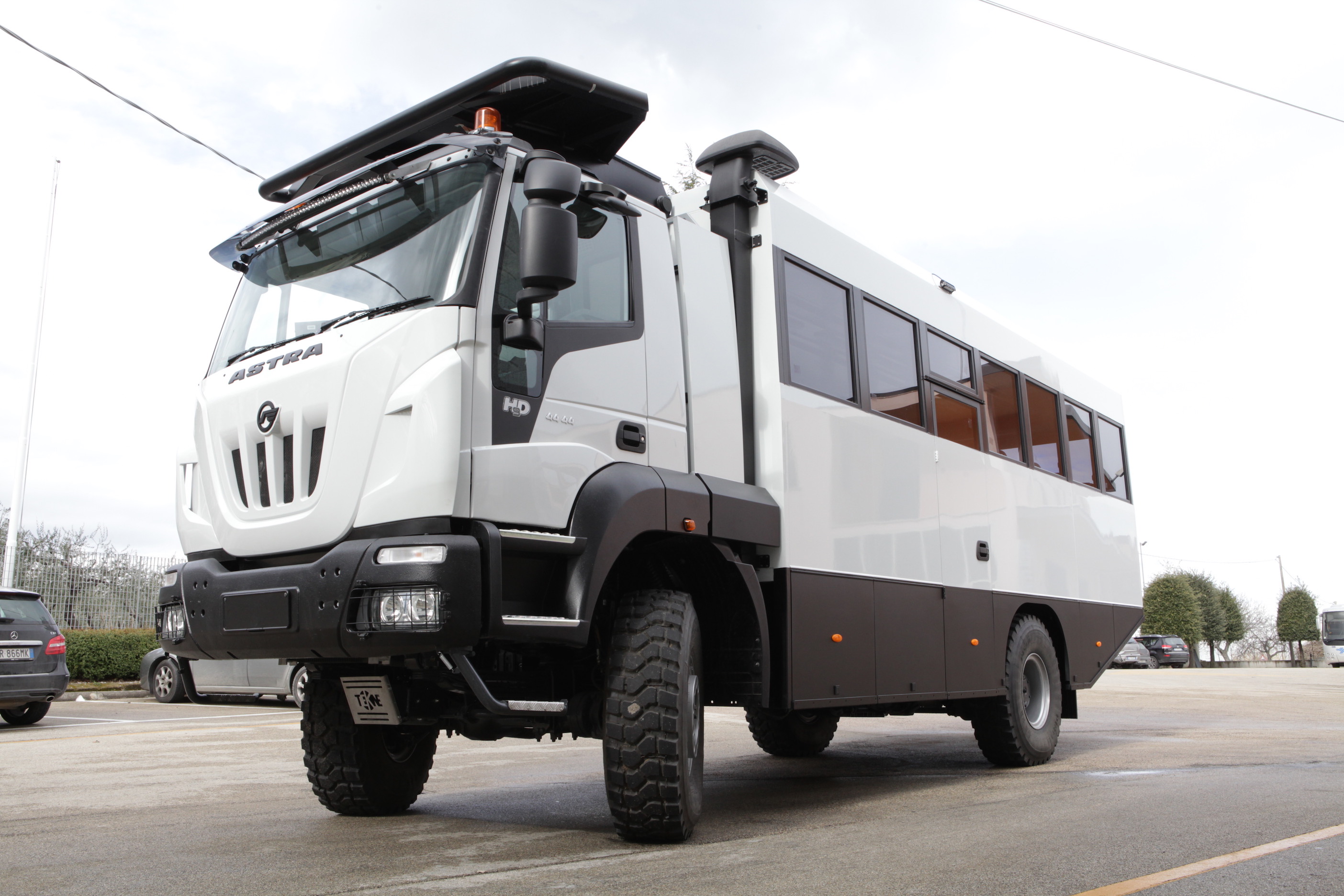

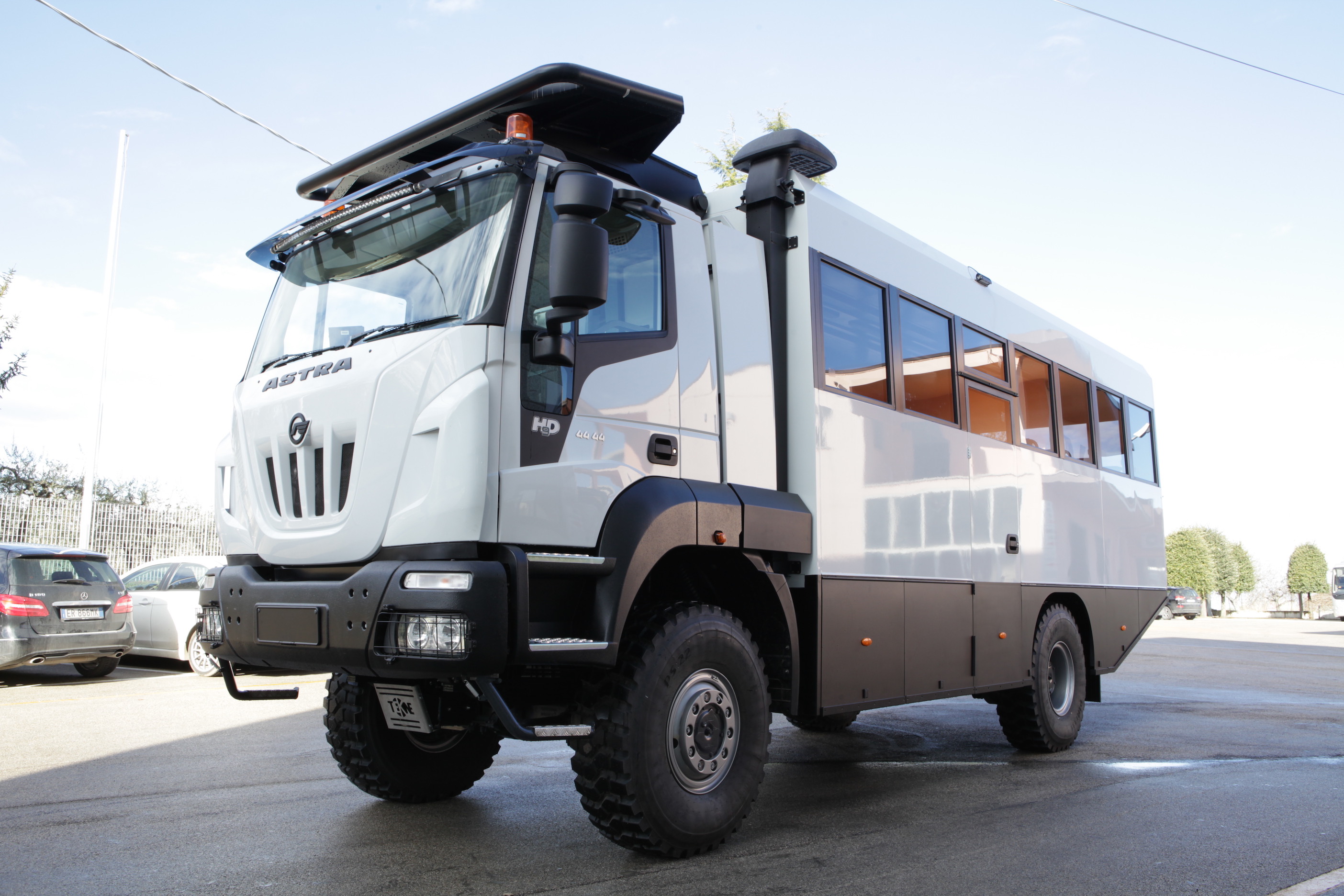

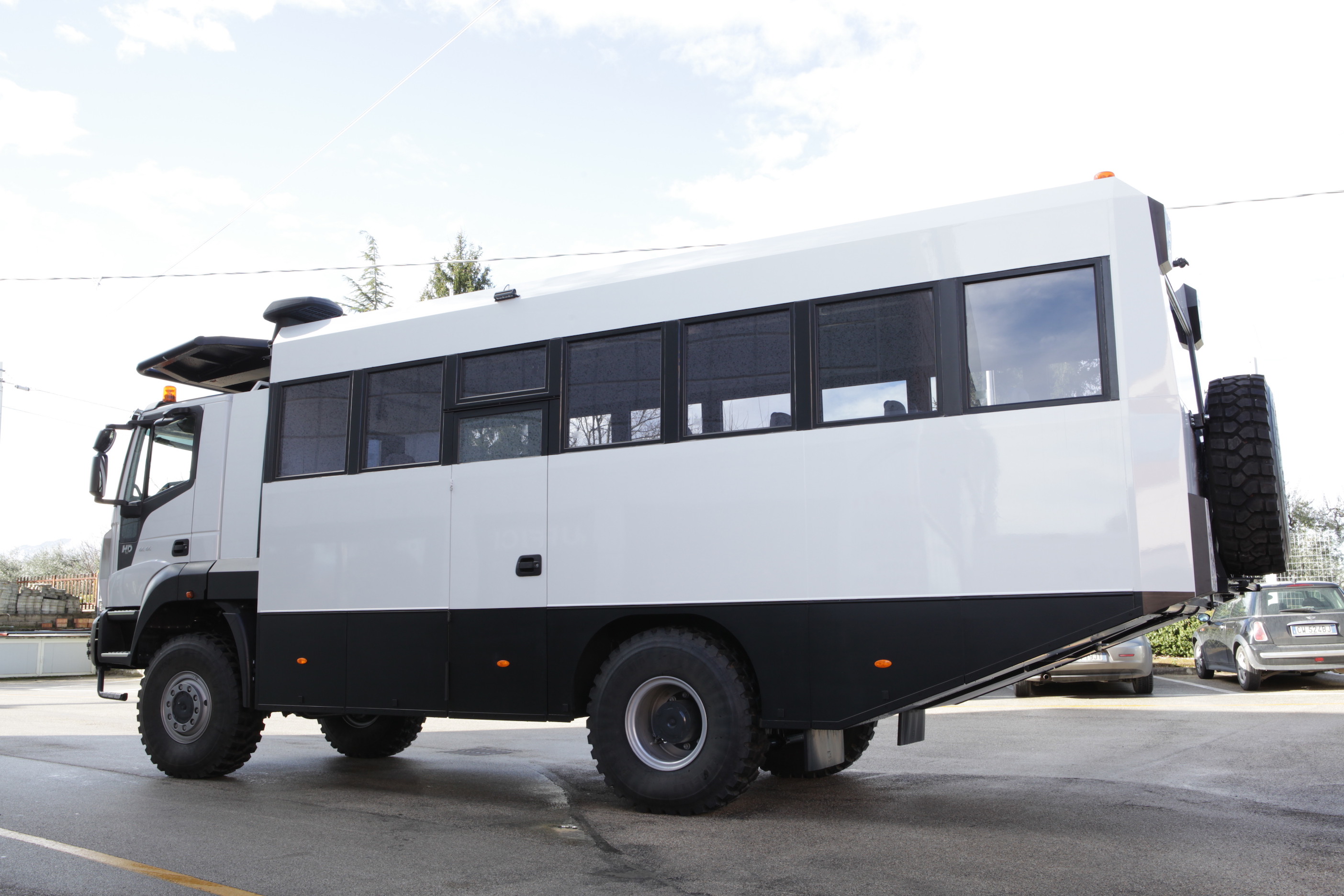

ASTRA HD9 44.38 Heavy Duty Bus for Mining
