Product Details
- Model:

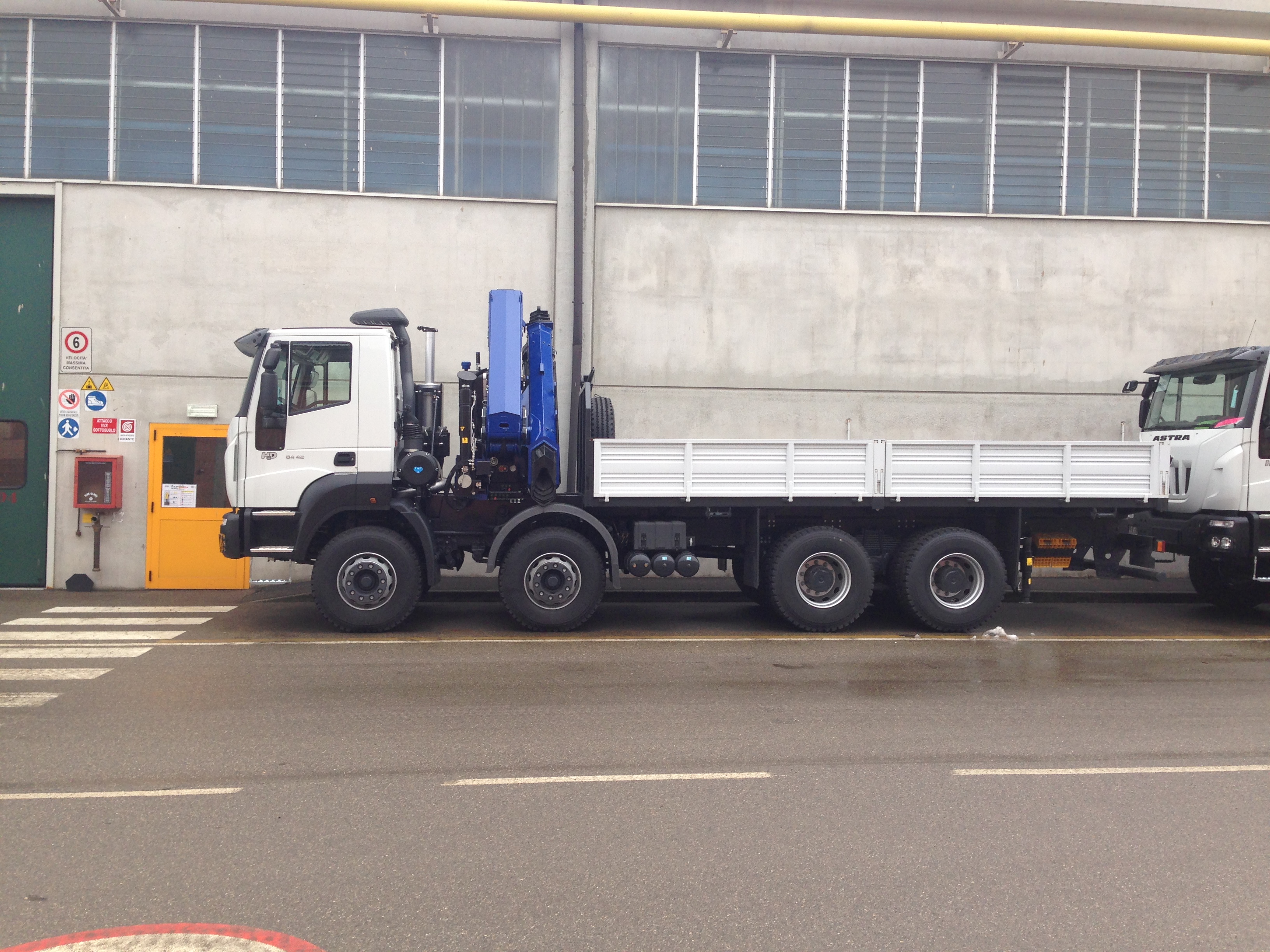

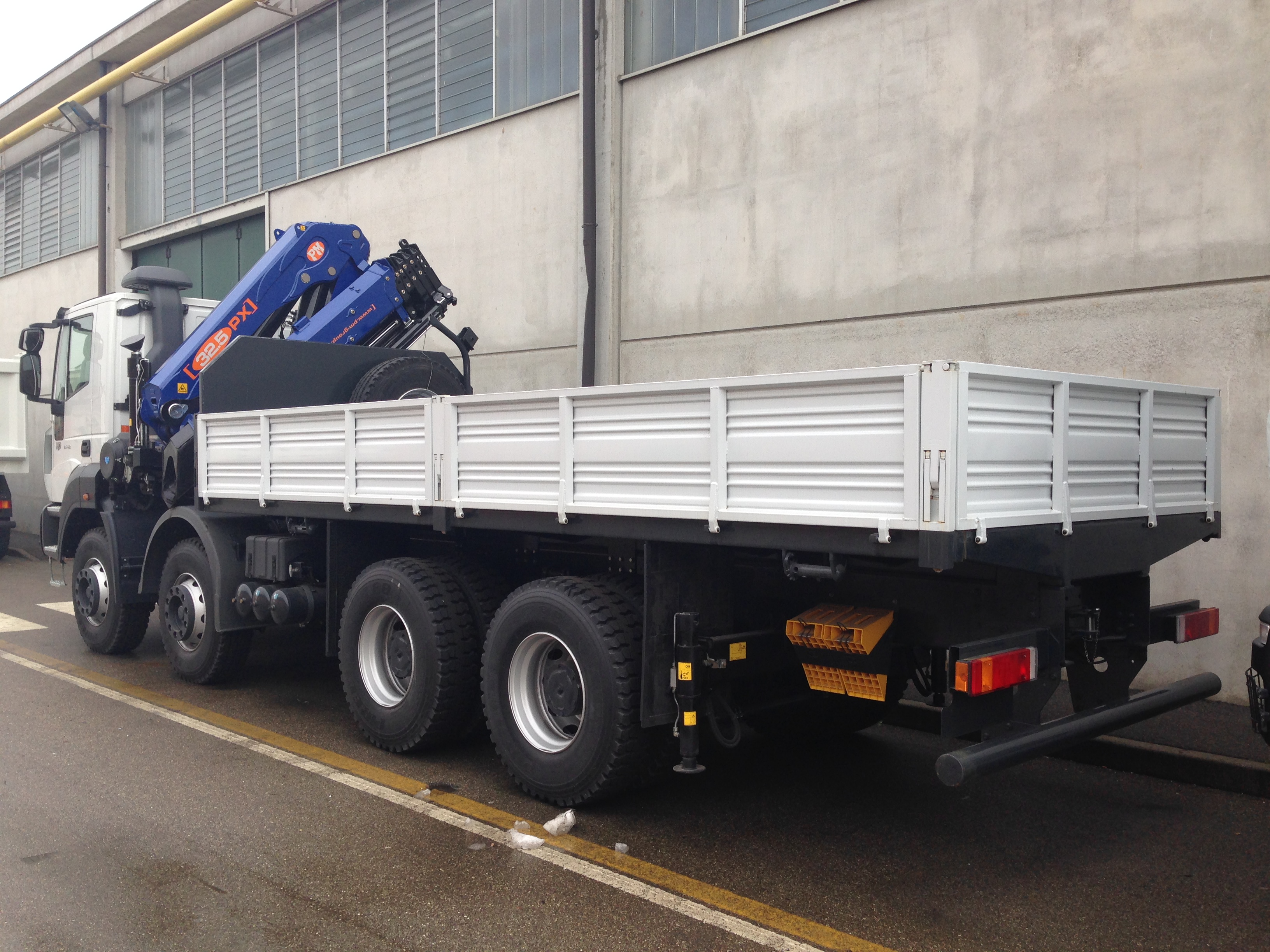

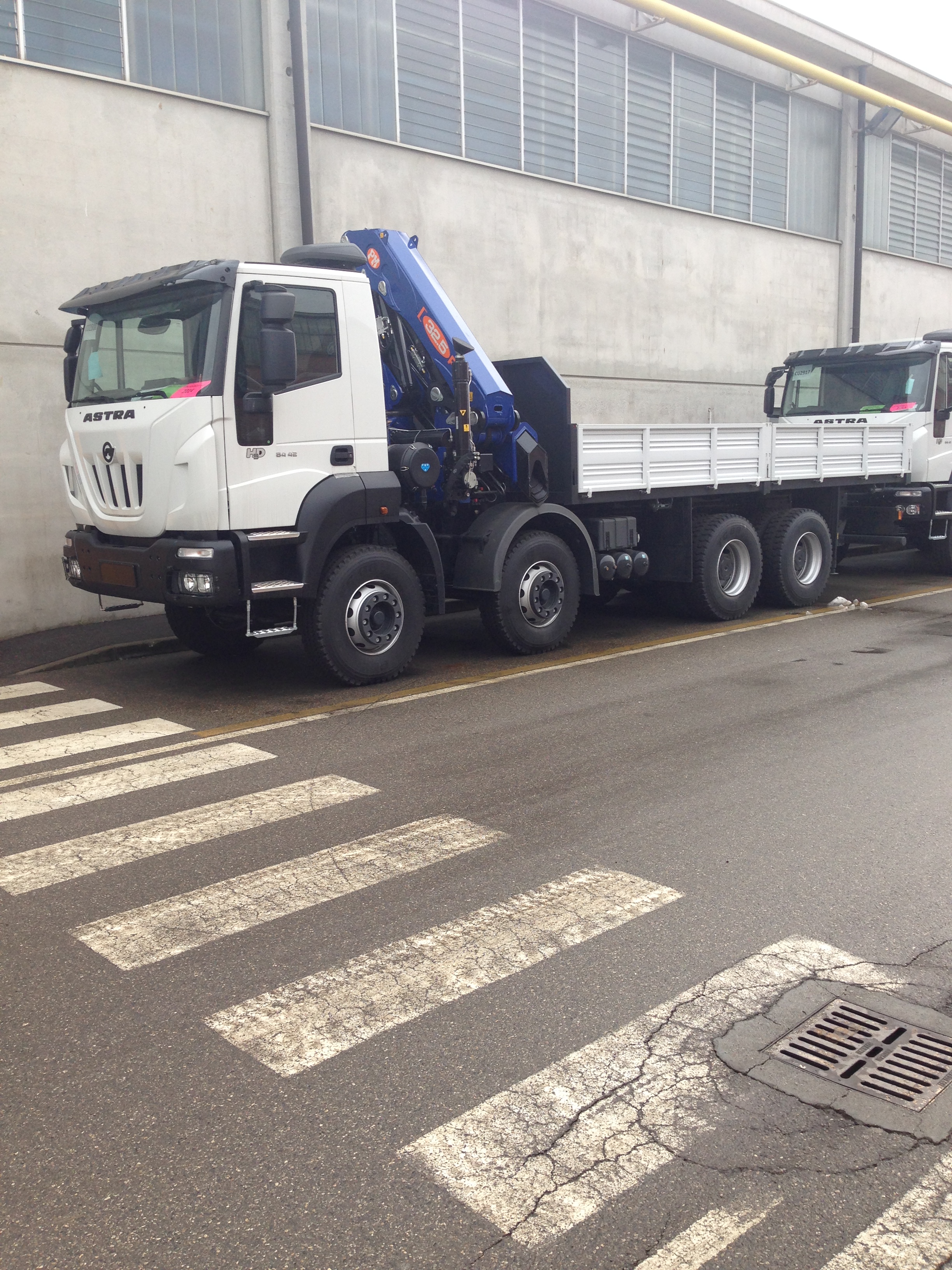

- ASTRA HD9 84.42
- Year of Registration:
- 2014
- Equipment:

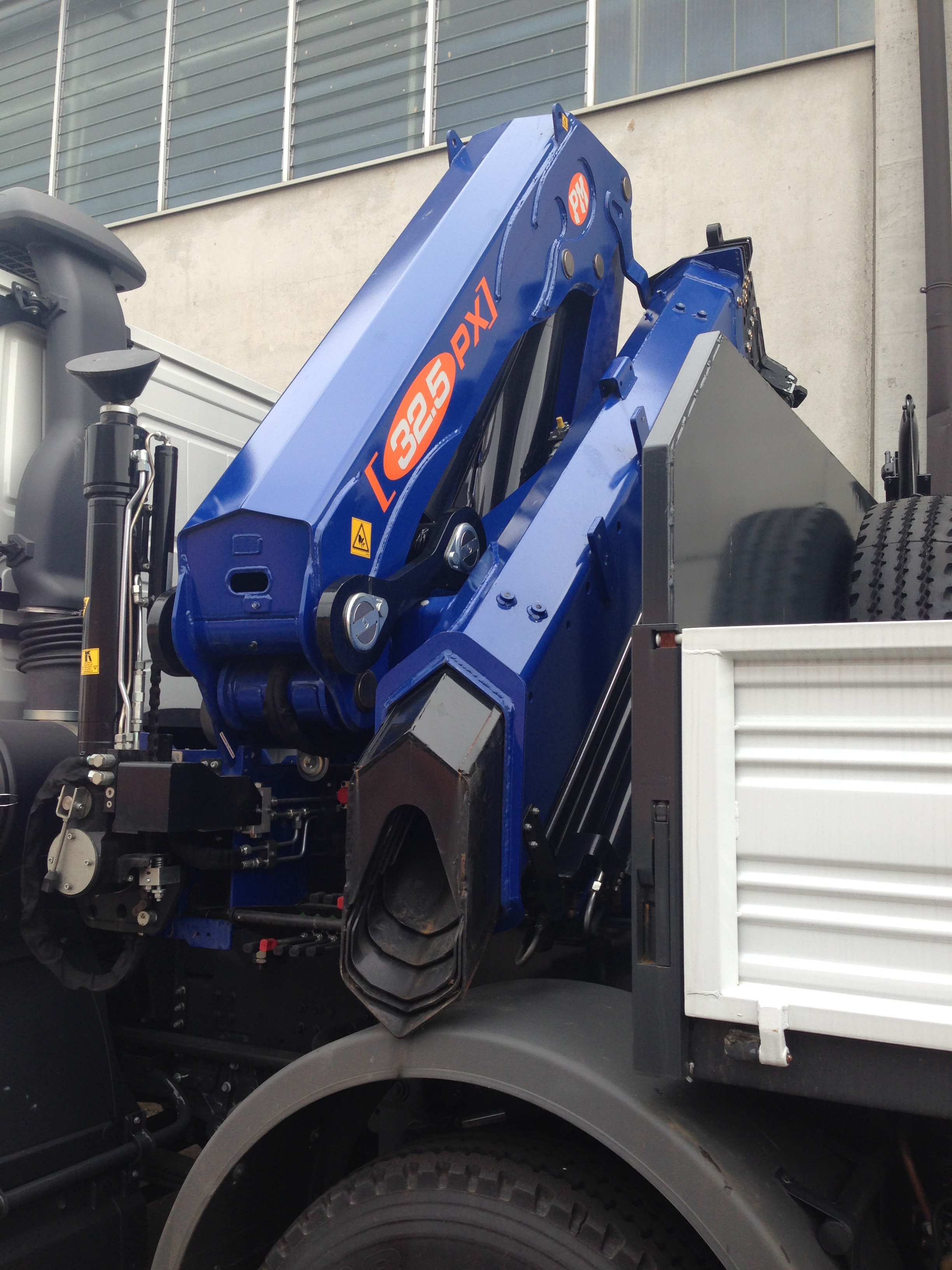

- PM Medium Crane 32.5 PX Serie and Flat Steel Bed 6,3 cm
- Quantity Available on Stock:
- 1
- Price:
- 165.000,00 EURO
- Colour:
- White
- Cabin:
- Cab built in galvanized pressed steel with hydraulic tilting up to 60°. Cab suspension with 4 helicoidal springs with coaxial shock absorbers and integrated dampers, anti-roll bar and end-of-stroke pads
- Engine / Cylinders:
- CURSOR 13 turbo intercooler euro 3 diesel injection/cycle with electronic unit injection pumps. Waste Gate. Single block head, four valves per cylinder, light alloy pistons. Total displacement: 12.882 cm3. Bore for stroke: 135 x 150 mm. 6 in-line cylinders. Water cooling. Viscostatic cooling fan. Dry air filter with safety cartridge. Vertical muffler
- Power:
- 309 kW (420 HP)
- Emission:
- EURO 3
- Drive:
- 8x4
- Axles:
- FRONT Steering axles, hot moulding in high tensile steel. Wheel stud protection. REAR Two tandem drive axles. Double reduction: central with crown wheel and pinion and final in wheel hubs by epicyclical group.
- Brakes F/R:
- Front and rear “simplex” self-adjusting brakes system. IVECO BRAKE TURBO engine brake: HD9 380/420 HP braking power 200 kW (272 HP)
- Gearbox:
- Manual ZF ZF16S2220TO Ecosplit 4 technology gearbox with servoshift, 16 synchronised forward speeds + 2 reverse
- Suspension F/R:
- FRONT 1st and 2nd axle, parabolic springs, n° 3 leaves 26x90 mm, shock absorbers and stabilizer bar on 1st axle; REAR Parabolic springs, swivelling on central pin: n° 4 leaves 40x100 mm, torque bars and stiffening brackets. Stabilizer bar on 4th axle
- Tyres F/R:
- FRONT: 315/80R22,5 156/150 G Single tubeless; REAR: 315/80R22,5 156/150 G Twin tubeless
- Accessories:
- Sun Visor, AC
