Product Details
- Model:
- ASTRA HD9 66.48
- Year of Registration:
- 2014
- Equipment:

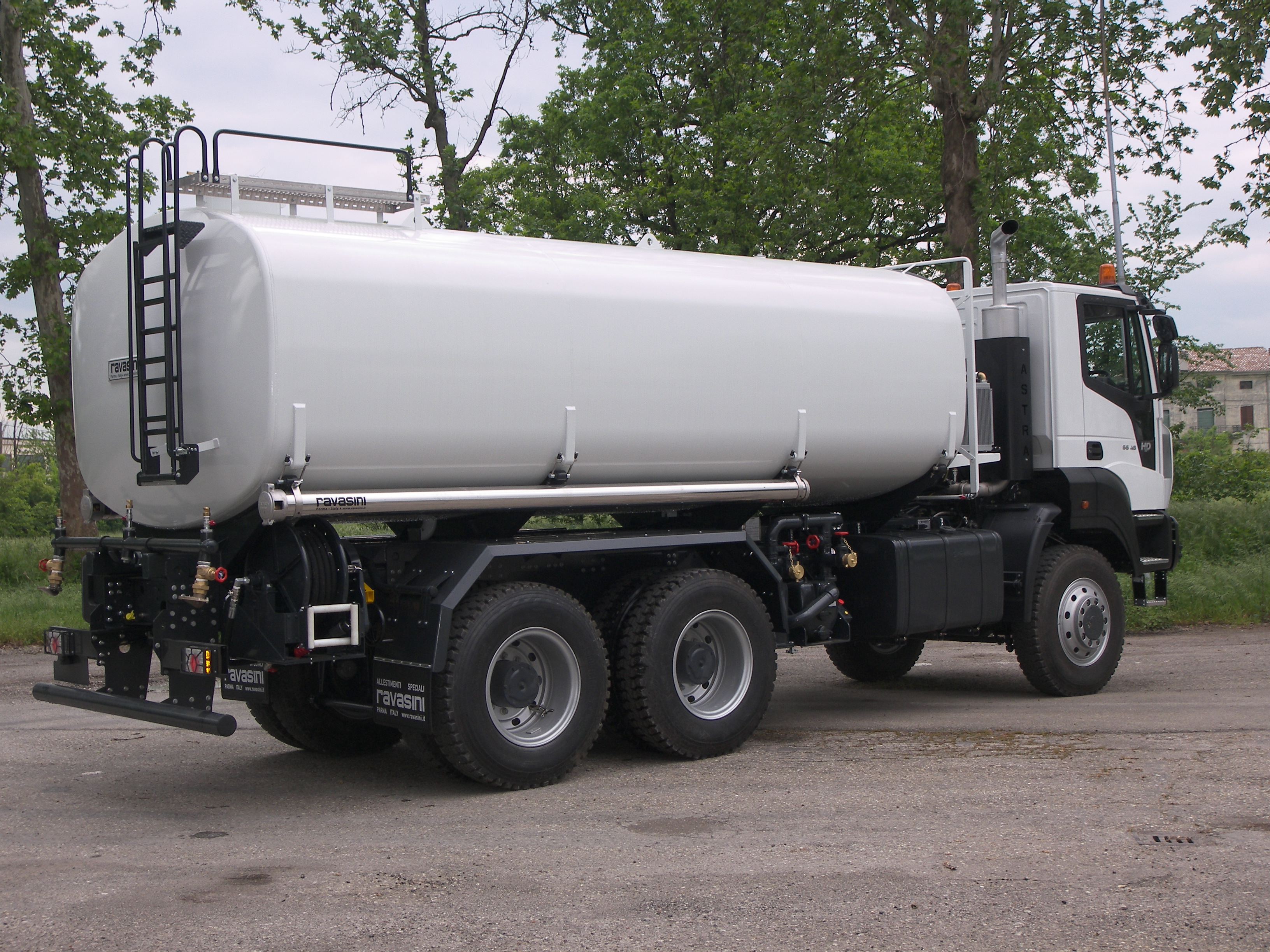

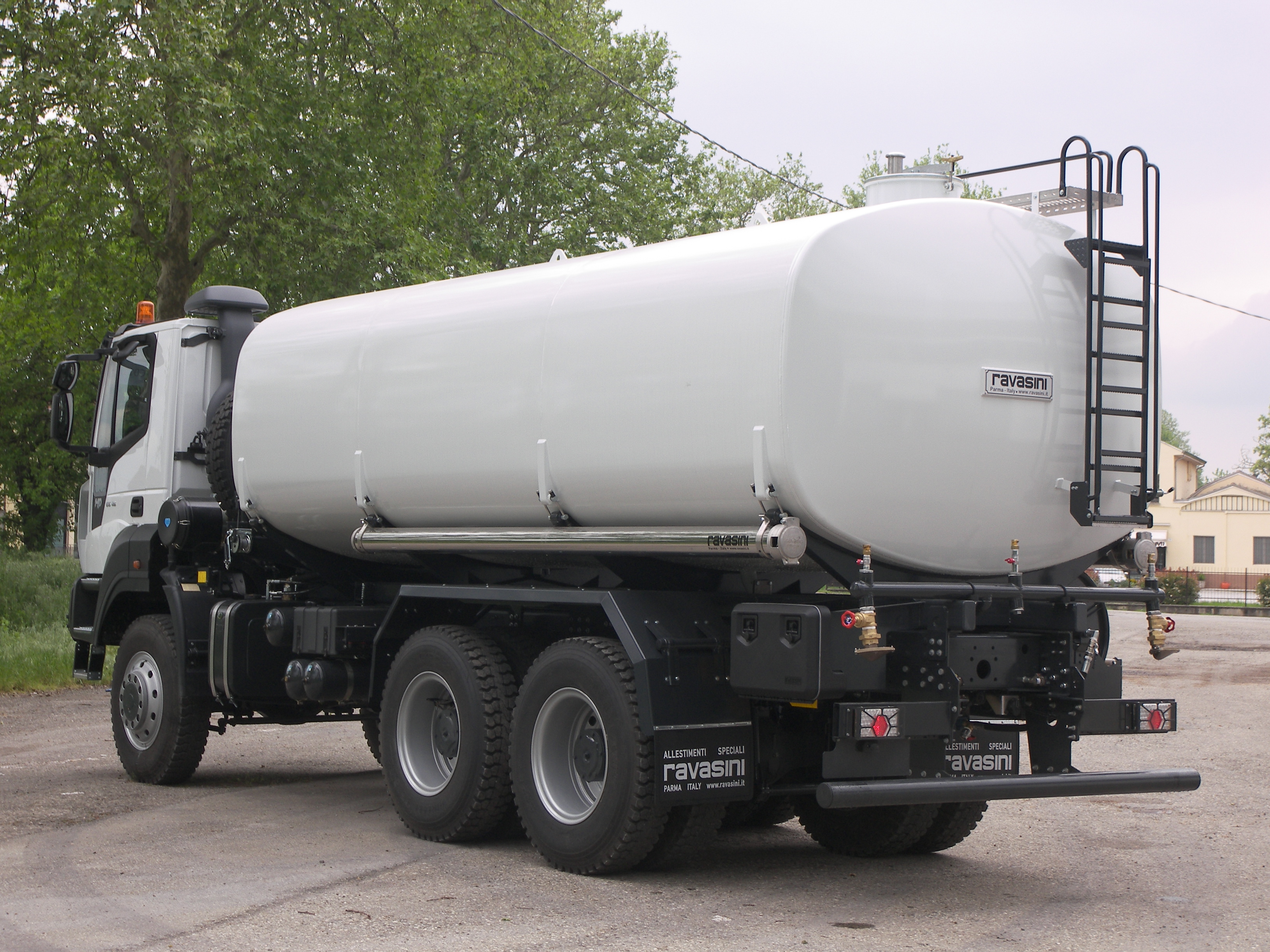

- 24.000 lt for industrial water transportation with loading and unloading unit, front and rear spray bars, hose reel and monitor by RAVASINI
- Quantity Available on Stock:
- 1
- Price:
- 137.000,00 EURO
- Colour:
- White
- Cabin:
- White cab built in galvanized pressed steel with hydraulic tilting up to 60°. Cab suspension with 4 helicoidal springs with coaxial shock absorbers and integrated dampers, anti-roll bar and end-of-stroke pads
- Engine / Cylinders:
- Iveco CURSOR 13 turbo intercooler euro 3 diesel injection/cycle with electronic unit injection pumps. VGT, Single block head, four valves per cylinder, light alloy pistons. Total displacement: 12.882 cm3 . 6 in-line cylinders. Water cooling. Viscostatic cooling fan. Dry air filter with safety cartridge. Vertical muffler.
- Power:
- 480 HP
- Emission:
- EURO 3
- Drive:
- 6x6
- Axles:
- Steering cast iron type; with double reduction, central with bevel pinion-crown, lateral by means of epicyclical assembly in wheel hubs
- Brakes F/R:
- FRONT and REAR Drum Brakes
- Gearbox:
- Manual ZF Ecosplit ZF16S2520TO 4 technology gearbox with servoshift, 16 synchronised forward speeds + 2 reverse
- Suspension F/R:
- FRONT: Parabolic leaf springs with bushings, 4 leaves 24x90 mm, with shock absorbers and standard stabiliser. REAR:Parabolic springs, swivelling on central pin: 4 leaves 40x100 mm, supplemented by torque bars and stiffening brackets.
- Tyres F/R:
- FRONT: 12 00 R 20 156/150G Single tubeless; REAR: 13R22,5 156/150 G Twin tubeless
