Product Details
- Model:

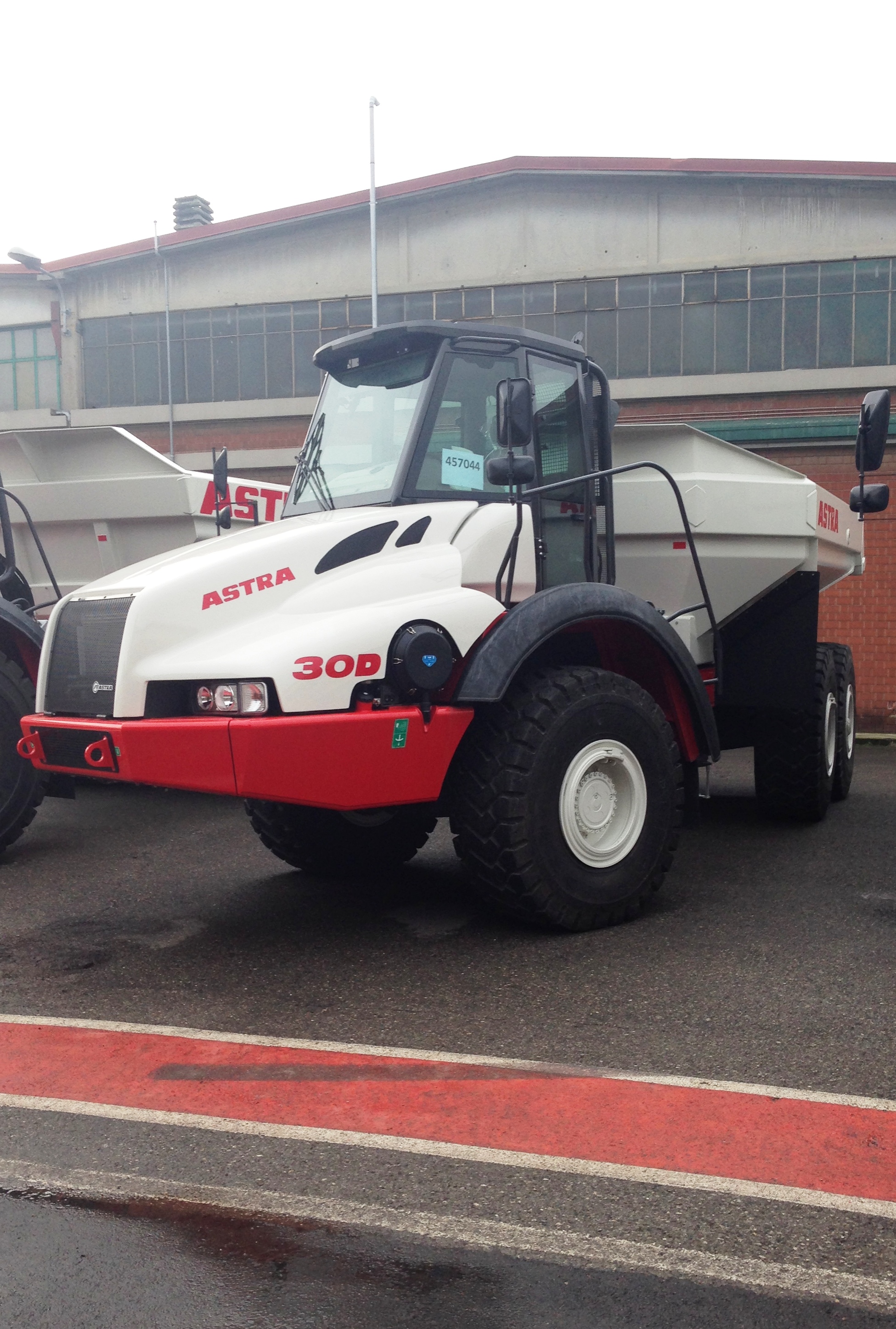

- ADT30 D
- Year of Registration:
- 2014
- Equipment:
- Tipper Walls and bottom in high abrasion strength steel (Hardox 400) - Payload 28.160 kg (31 Sht) - Body heaped (SAE 2:1) 17.6 m 3
- Quantity Available on Stock:
- 1
- Price:
- 225.000,00 EURO
- Colour:
- White / Red
- Cabin:
- ROPS ISO 3471 / FOPS ISO 3449 Level II Stainless steel, soundproof and centrally installed, suspended through oil-rubber pads
- Engine / Cylinders:
- 6 in-line cylinder Diesel cycle, electronically controlled direct injection, pump injectors, variable geometry turbocharger with intercooler
- Power:
- 260 kW ( 353 HP) @ 1900 rpm
- Emission:
- TIER III
- Drive:
- 6x6
- Axles:
- Permanent 6x6 drive configuration, Kessler D81 axles. Double reduction: central by bevel gear and final by planetary gears in the wheel hubs. New rigid front axle
- Brakes F/R:
- Dry disk brakes with single caliper on front axle and double caliper on intermediate axle. Pneumatic control fed by air compressor and pressure accumulators, hydraulic activation through converters
- Gearbox:
- Automatic ergopower ZF 6WG260 transmission with 6 gears forward and 3 reverse. Hydraulic torque converter. Automatic lock-up in all gears. Integrated and lockable transfer box
- Dimension:
- 10.181mm x 3.609mm x 2.961mm
- Suspension F/R:
- Front: semi-independent, with "A" frame, and PANHARD bar. Hydro-pneumatic suspension cylinders (oil-nitrogen). Rear: semi-independent rocker type, connected to axles by flexible joints and integrated with central reaction bars on axles
- Tyres F/R:
- Tubeless 23.5 R 25
